| Protokoll | 100 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet |
| Grensesnitt | PCI Express 3.0 x16 / PCI Express 4.0 x16 |
- Dual QSFP28 ports for 100Gb Ethernet connectivity
- Operates in a wide temperature range from 0 °C to 55 °C
- Supports advanced features like ADQ, DDIO, and QoS
- Optimizes virtualized environments with SR-IOV and VMDq
- Compatible with a broad spectrum of protocols including TCP/IP and iSCSI

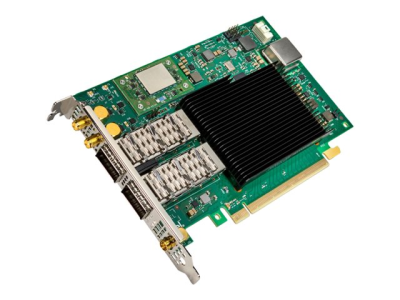

Increasing growth in 5G RAN and edge deployments is driving demand for high-precision timing synchronization across the network. Meet these challenging requirements head-on with a standards-based PCIe adapter that provides greater flexibility at a lower price point than single-purpose timing appliances. Most 5G RAN deployments use 1588 PTP, SyncE, or both to ensure required timing synchronization. Both of these synchronization methods are supported by the E810-CQDA2T, while additional hardware enhancements ensure reliability and accuracy, and provide greater flexibility and simplicity for timing synchronization deployments. Support for synchronization. Synchronous Ethernet (SyncE) delivers frequency synchronization over Ethernet between SyncE-enabled devices. Extends traditional telecom timing architecture to commercial-off-the-shelf (COTS) Ethernet solutions. IEEE 1588 PTP enables synchronization of systems on a network through the transfer of timing data (including frequency, phase, and time of day) with hardware timestamping in PTP packets. Onboard high-precision oscillator maintains high accuracy during holdover (when the synchronization source is not available), providing up to four hours with less than +/- 1.5 microsecond of phase error. Hardware features for deployment flexibility. Subminiature version B (SMB) coaxial connector allows connection to an external active GNSS antenna. Dual external SubMiniature version A (SMA) coaxial connectors allow connection to external 1PPS timing sources, such as GNSS signaling, devices and to timing recipients, enabling the network adapter to act as a grandmaster and as a timing source for other equipment. The output capability provides a way to audit the phase accuracy of each node. U.FL connectors, embedded coaxial connectors, allow 1PPS signal connectivity between the adapter and motherboard or another adapter. Dedicated send-and-receive U.FL ports are embedded on the adapter. Each port can be programmed to act as many different physical network adapters, with a maximum throughput of 100Gbps.
