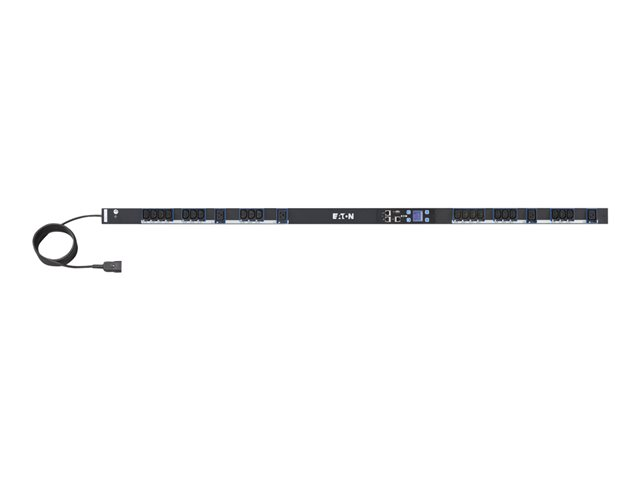

Eaton ePDU G3 Metered Outlet

Strømfordelerenhet (kan monteres i rack) - Ethernet 10/100, RS-232 - inngang: IEC 60320 C20 16A - utgangskontakter: 24 - 0U
Ikke på lager
Produsent Eaton
Artnr EMOB22
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Allows device level metering over A and B feeds (Requires Daisy Chained ePDUs)
    • Input and Phase Metering, Circuit Breaker Current Metering
    • Circuit Breaker status monitoring
    • Level 3 PUE measurements
    • Highly secure with user access control, password protection and SSL configurable to 1024 or 2048 bit
    • IEC outlet eGrip plug retention: retains all standard IEC plugs
    • 60 Degree C operating temperature
    • Color-coded outlet and branch circuits for simple load balancing
    • Eaton Hydraulic - Magnetic Circuit Breakers with accidental trip protection
    ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
