Eaton Tripp Lite Series 12U Wall Mount Rack Enclosure Server Cabinet Side Mount Wallmount

Rack skap - veggmonterbar - svart - 12U - 19"
Ikke på lager
Produsent Eaton
Artnr SRW12UHD
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Wall-mountable design for space-efficient installation
    • Removable side panel for easy access to equipment
    • Integrated cable management for organized wiring
    • Vented side panels to enhance airflow
    • Supports up to 226.8 kg for versatile equipment options

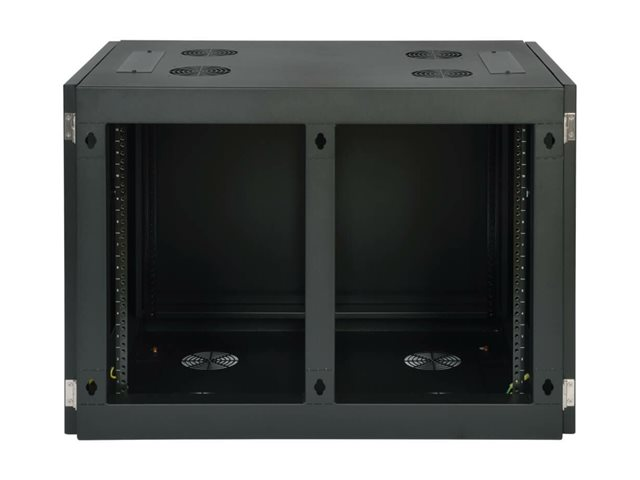

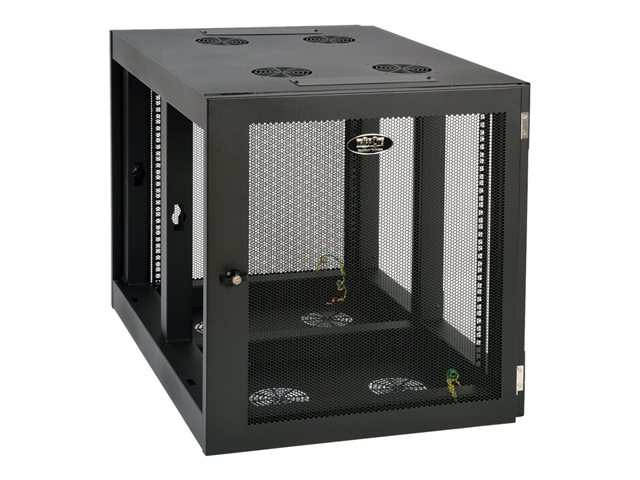

    The SRW12UHD SmartRack 12U heavy-duty low-profile server-depth side mount wall mount rack enclosure cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 227 kg (500 lbs.).

    Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels.

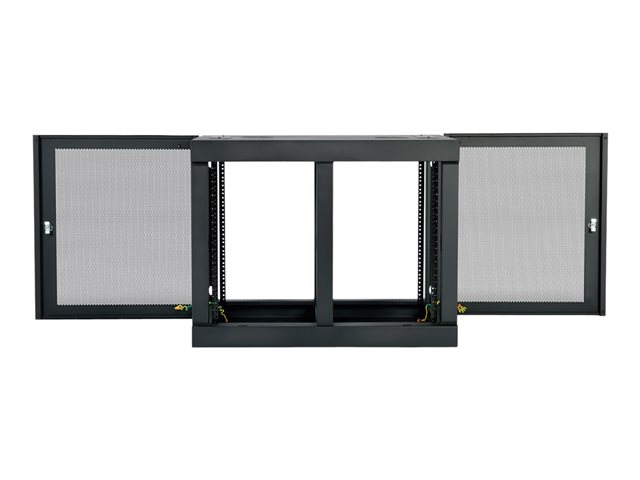

    The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.

    The SRW12UHD comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.
